Diy Dust Collector

The one I bought cost around 18. The idea is to have a chamber that is in-line between your tool and the dust extraction youre using.

Jual Murah Diy Sn50t3 Dust Deputy Turbocharged Cyclone Dust Collector Jakarta Selatan Shopslic Tokopedia

The next part goes at the bottom of the centre section and divides it from the collection bin below.

Diy dust collector. This is one of the easiest dust collectors to make and one that keeps the sawdust out of your shop vacuum cleaner. We added a new dust collector within our shop which al. Shop vacs make convenient mobile dust collectors but they are very loud and consume so much power that you often have to run them on a separate circuit.

At its core a dust collector is a basic wooden box with an exhaust fan or blower attached. Making an efficient dust collector is not difficult and doesnt even take very long to do. Dust collection is an online process for collecting any process-generated dust from the source point on a continuous basis.

Most shop vacs actually consume more power and are louder than larger dust collection units like the one in the background of this photo. Make sure to pick a strong and rigid bucket that wont implode while using your dust collector. You then connect a length of hose from the tool to the fan.

Super cheap to make and saves you money. The chamber is intentionally shaped to circulate the incoming dust in a cyclone allowing the heavy sawdust and other chunks to fall into a bucket. The only thing that youll really need is a blower motor of some sort.

50mm vacuum hose which costs about 26 for 3 meters. Using the grate I took out of the floor drain I lined it up to the intake side of the blower and marked the 3 mounting holes. Dust collectors may be of single unit construction or a collection of devices used to separate particulate matter from the process air.

It works with a low voltage relay and switch system to automatically turn on the collector when ever a blast gate is opened and vice-versa. Then he runs a length of hose from the tool to the exhaust fan which will collect the dust and particulates and deposit them into the sealed box. This is where a dust separator comes in.

To build my cyclone I used these things. How To Turn a Shop Vac Into a DIY Dust Collector A basic shop vacuum can power a budget dust collection system with parts you can buy off the shelf from your local home center. This is similar to how bagless vacuum cleaners work.

DIY Dust Collector System - DIY Builds. DIY cyclone dust separator. Homemade small dust collector.

Wandel recommends using the cheaper 20 X 25. The rest of these things I just found lying around or repurposed. In this video we walk through the process of setting up a dust collection system within your own shop.

Completed system picture first. As I explain below 2 meters is probably enough and would have cost only about 18. They are often used as an air pollution control device to maintain or improve air quality.

To attach it more construction adhesive is applied to the rim of the centre section. I removed all the screws from the blower to sperate the housing. Very cheap to build as it only requires your existing shop vac hose one more hose a bucket and two PVC elbows.

I ran the self tapping screws in to ream the holes. This collects the particulates and dust and it. How to Build a DIY Dust Collector with a Shop Vac Get the Basics.

It is a typical Thien baffle with a slot cut three quarters of the way around to let the dust drop through to the collection bin. The one pictured in this post was given to me but a shop vac motor or even a leaf blower will do just as nice a job. This is a fantastic cheap and extremely easy way to minimize dust in your shop while saving the filter on your existing shop vac.

The system has a stock harbor freight dust collector that I modified to become a cyclone separator into an old 55 gallon barrel. It came with two 50mm adapters nuts and bolts hose clamps and instructions.

Dust Collection On A Budget With Rockler Dust Right Series Lazy Guy Diy

4 Inch Dust Separator Cyclone Dust Collector Kit For Use With Barrels Trash Cans Buckets Or Custom Built Containers Amazon Com

Jual Diy Sn50t3 Dust Deputy Turbocharged Cyclone Dust Collector Kota Surabaya Ootdshop Tokopedia

How To Build A 99 Efficient Cyclone Dust Collector How To Carbide 3d Community Site

2 Stage Harbor Freight Dust Collector Youtube

Dibea D18 Transparan Profesional Dust Collector Untuk Dibea D18 Diy Protable 2 Di 1 Nirkabel Vacuum Cleaner Onderdil Vacuum Cleaner Aliexpress

How To Make Simple Cyclone Dust Collector Youtube

Cheap Diy Dust Collector Youtube

Build A See Through Cyclone Dust Separator For Your Shop Vac Make

2824 Diy Cyclone Dust Collector Dust Collection Shop Dust Collection Dust Collection System Dust Collector

10 Cheap Easy Diy Dust Collector Plans Diy Crafts

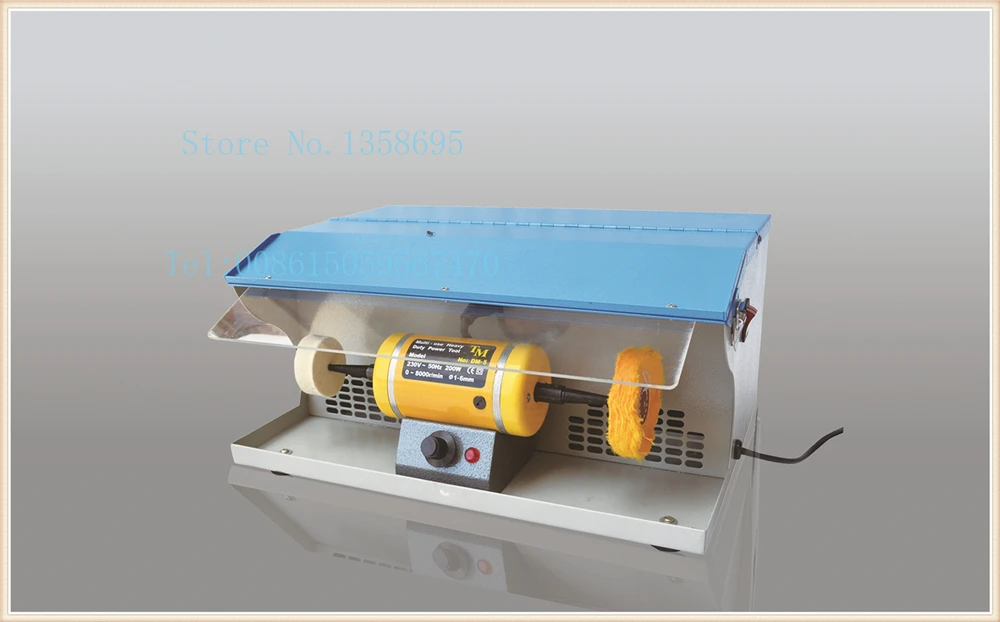

Diy Alat Perhiasan Polishing Mesin Dengan Dust Collector Gold Grinding Motor Bangku Bubut Buffing Polishing Mesin Tool Phone Tool Downmachine Filling Aliexpress
